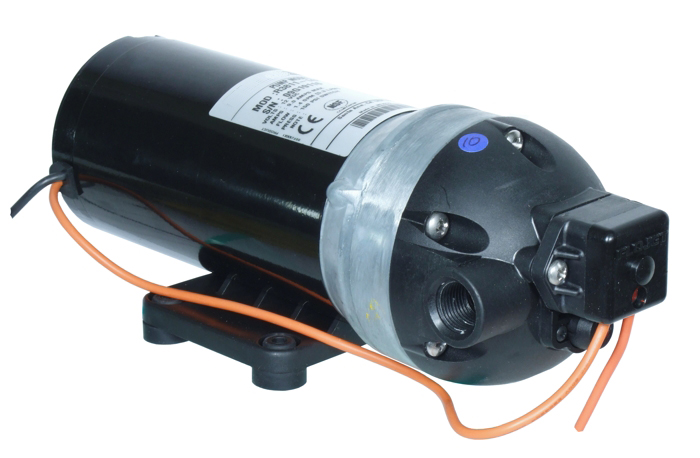

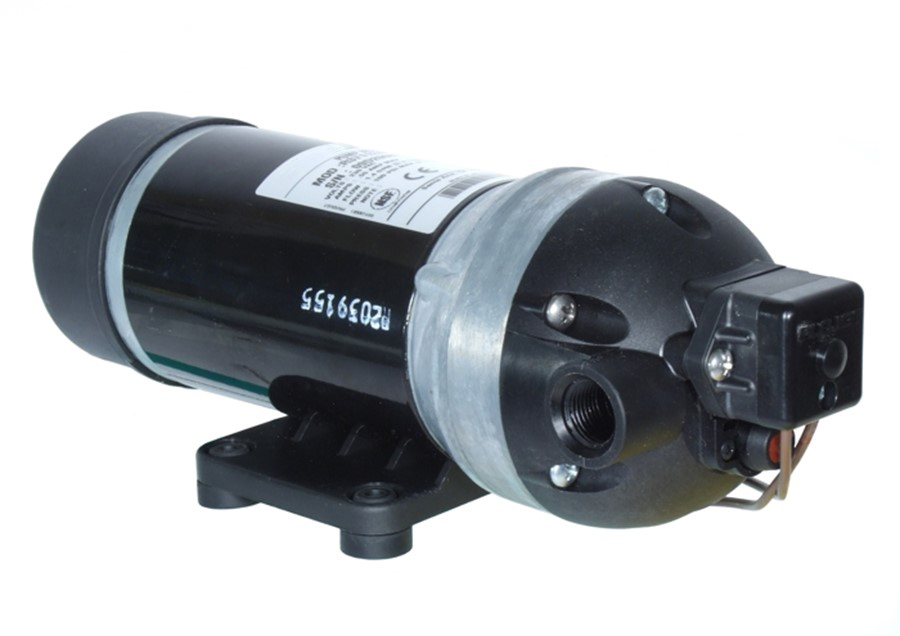

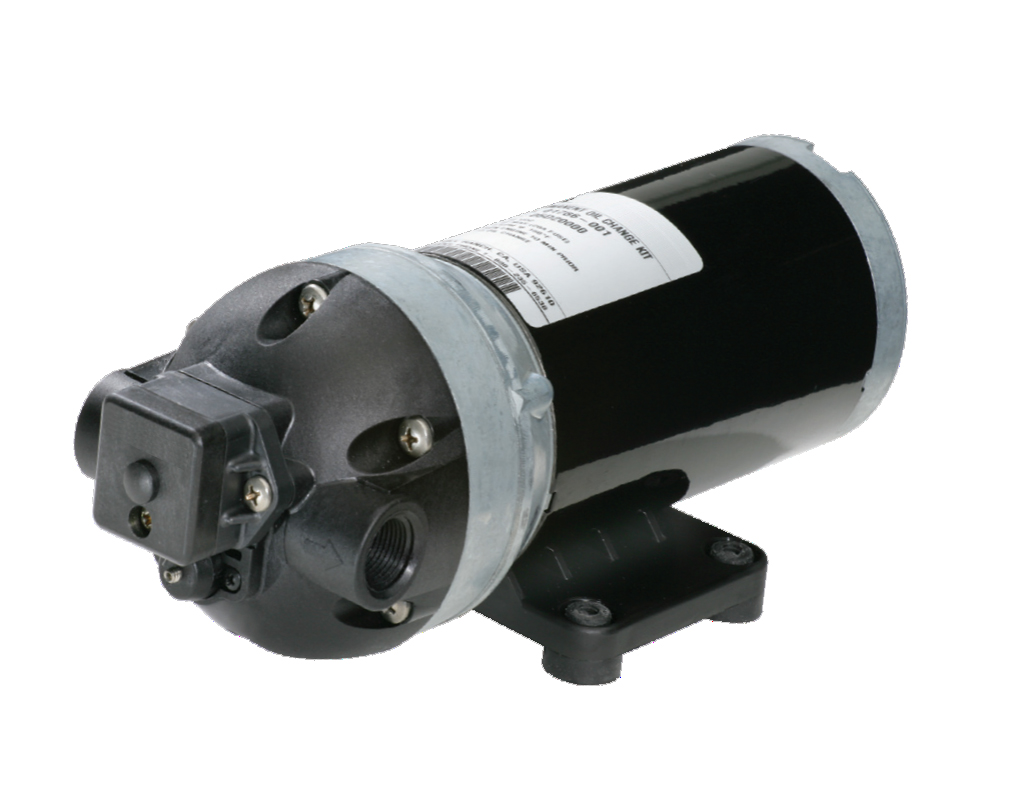

FLOWEXPRESS Diaphragm Pump DP-200 Series
Flow rates up to 1.4 GPM(5.3 LPM) and operating pressureof up to 200 psi (13.8 bar). Constructed from a selection of materials suitable for handling abroad range of chemicals. Innovative bypass design. Self priming up to 8ft (2.4m). Sealed motor. Can run dry for extended periods of time without damage. Coinjected molded diaphragm technology. Consistent pressure over time.
FLOWEXPRESS Diaphragm Pump DP-200 DC 12V 24V 5.3LPM/1.4GPM 200PSI/13.8Bar for General Industrial Chemical washdown Evaporative Cooling Systems, Agricultural Misting, Spot Sprayers, Boom Sprayers (to reach tree tops), Floor Care Carpet Extractors, Carpet Cleaning, Automotive Boost Cooling
Overview
Sovoflo® FlowexpressTM High Pressure Pumps are engineered to be the most advanced and reliable product available. The redesigned and improved pumps offer unequaled performance and life.
Sovoflo's unique three chamber design allows these pumps to operate at exceptional flow rates and pressures. With operating pressures up to 200 psi (13.8 bar) and self-priming capabilities.
Sovoflo Flowexpress pumps are designed to be the most versatile pumps on the market today. They are the ideal solution for applications including spraying, misting, filtration, cooling, dispensing and pressure boosting.
The Sovoflo Flowexpress Series High Pressure Pumps are available now in 12V DC, 24V DC, 115V AC and 230V AC models, and being made from Santoprene/EPDM and Santoprene/Viton makes them capable of handling a broad range of chemicals.
Features and Benefits
• Flow rates up to 1.4 GPM (5.3 LPM) and operating pressure of up to 200 psi (13.8 bar)
• Constructed from a selection of materials suitable for handling abroad range of chemicals
• Innovative bypass design
• Self priming up to 8ft (2.4m)
• Sealed motor
• Can run dry for extended periods of time without damage
• Coinjected molded diaphragm technology
• Consistent pressure over time
Applications
DP-200 diaphragm pumps are suitable for liquid transportation such as reverse osmosis water purification systems, spray devices, industrial equipment, automobile washing, sanitation facilities, and medical equipment.
• General Industrial
- Chemical washdown
- Evaporative Cooling Systems
• Agricultural
- Misting
- Spot Sprayers
- Boom Sprayers (to reach tree tops)
• Floor Care
- Carpet Extractors
- Carpet Cleaning
• Automotive
- Boost Cooling
Construction
Specifications
| MODEL | VOLTS | AMPS DRAW | OPEN FLOW | PRESSURE | SUCTION | BYPASS | PRESSURE SWITCH | IN/OUTLET PORT | WEIGHT |
| KDP-200A | 12V DC | 12A | 5.3LPM/1.4GPM | 200PSI/13.8BAR | 2.4M | YES | YES |
3/8" NPTF
|
3.2KGS |
| KDP-200B | 24V DC | 6.0A | 5.3LPM/1.4GPM | 200PSI/13.8BAR | 2.4M | YES | YES |
3/8" NPTF
|
3.2KGS |
| KDP-200S | 220V AC | 0.6A | 5.3LPM/1.4GPM | 200PSI/13.8BAR | 2.4M | YES | YES | 3/8" NPTF | 3.5KGS |
Performance curves
Dimensions (mm)
