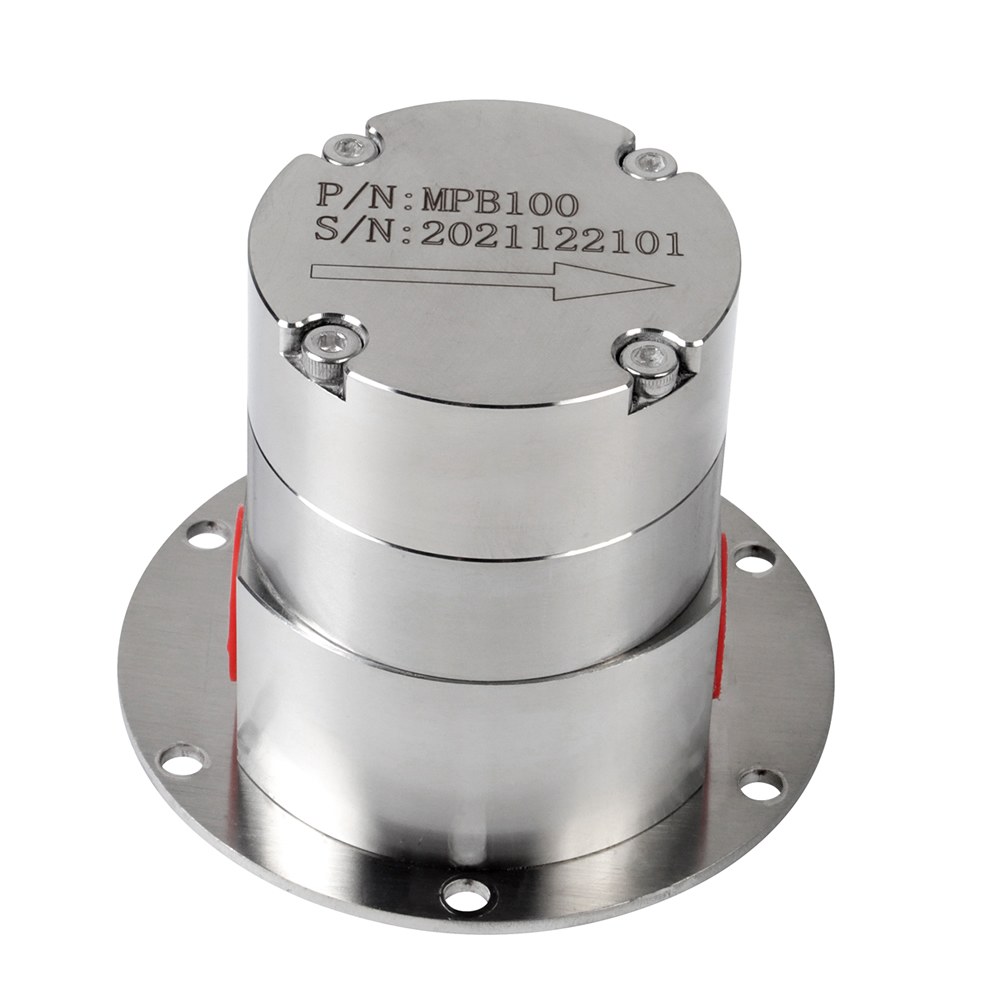

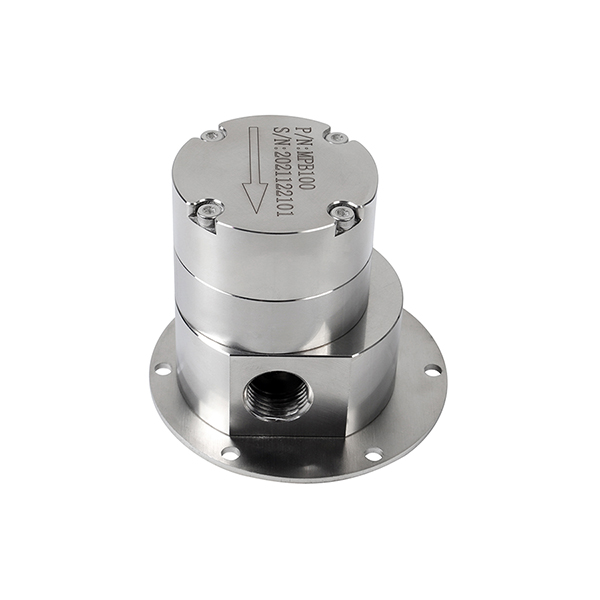

MPB100 Micro Gear Pump Magnetic Gear Pump 3.60ml/rev
MPB100 Micro Gear Pump Magnetic Gear Pump 3.60ml/rev
MPB series gear pump
The MPB series magnetic drive gear pump is a new type of gear pump. The gears are made of high-performance engineering plastic PEEK, and the housing and gear shaft are made of high-quality 316L stainless steel. The sealing ring (FKM) structure is sealed, which has stronger wear resistance and high temperature resistance, and is more stable. By coupling internal and external magnetic drives to transmit power, leak free transportation can be achieved. Suitable for applications that require precise flow control, high purity and non pollution of liquids, such as chemical, medical, filling, printing and coding industries, new energy vehicles, laboratories and other industrial fields.
The MPB100 magnetic drive gear pump provides a completely sealed pump chamber. No pulsation, no leakage, low noise, high performance, compact size, long lifespan. To solve the working condition of 6-10L/min flow rate, 0.5-10bar differential pressure.
- No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation. with servo and stepper motor delivery accuracy of +/-0.5%. - Strong vacuum suction capacity
High and Stable Conveyance Pressure. High pressure delivery in low viscosity liquids. - No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage. - Low Noise

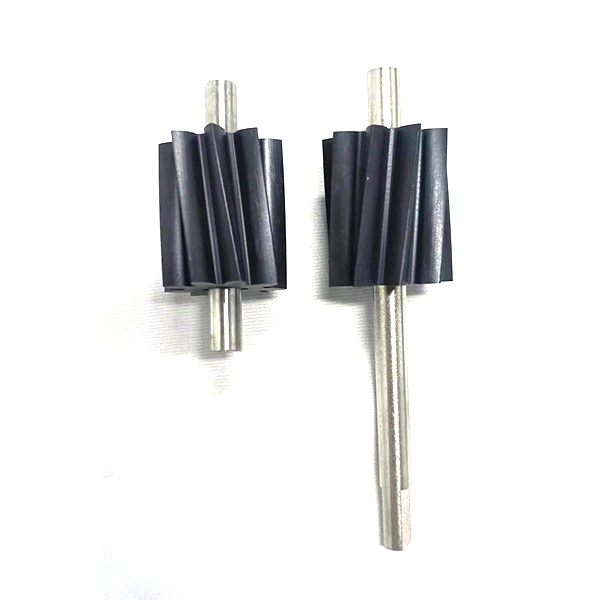

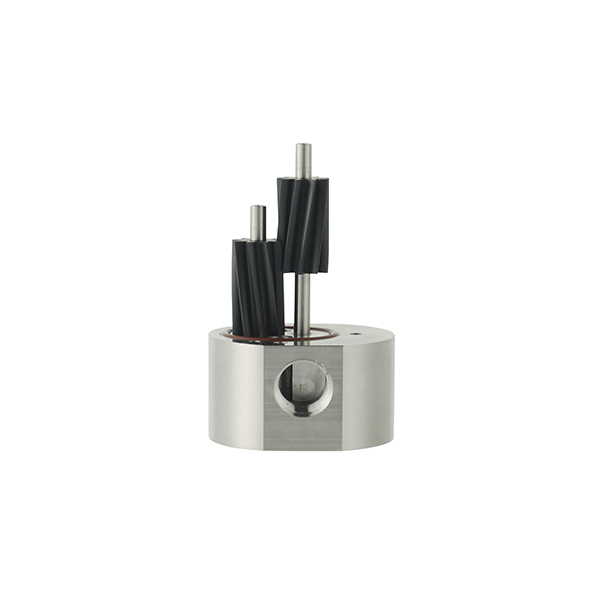

Torque is transmitted through magnetic coupling, avoiding the mechanical contact of traditional pumps. Helical gears are designed for a smooth meshing process, reducing friction, impact and vibration. - Long Lifespan
High-performance and precision technology, advanced craftsmanship to extend its operational lifespan.
Descriptions
MPB series micro magnetic gear pumps are a advanced type of gear pump. The gears are made of high-performance engineering plastic PEEK, while the housing and gear shaft are crafted from premium 316L stainless steel.The sealing material is static O-ring FKM or PTFE.
FKM has stronger wear resistance and high temperature performance, and PTFE has stronger acid, alkali and corrosion resistance. Power transmission is achieved through internal and external magnetic coupling, guaranteeing leak-free conveyance. Ideal for applications requiring precise flow control, high purity, and non-contamination of liquids. MPB micro magnetic gear pumps are applicable for Deionized water, methanol, urea solution, kerosene, additives, lubricating oil, lye, ammonia solution, cobalt solution, dialysate, ethylene glycol, freon, ink, glycerin, phenolic resin, curing agent, essence Fragrance, fluorinated liquid pumping system.
Features
- All parts of the pump body passing through the liquid are made of food-contact grade materials, which can meet the delivery and filling of daily drinking products.
- Magnetic drive, static sealing greatly improves the service life of the product, and truly no leakage.
- The use of high-quality PEEK gears, self-lubricating, self-priming without pre-adding liquid, and strong pressure output, can cope with all kinds of complex working conditions.
- The pulsation-free output allows for smooth conveyance of the medium and the measurement of the product at the same time
Model Specification
| Model | MPB | 100 | B | A | A | A | 4 | B |
|---|---|---|---|---|---|---|---|---|
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal |
||||||
| 2 | Flow Rate | 0-10L/min | ||||||
| 3 | Pump Body Material | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft Material | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy |
||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) |
||||||
| 6 | Motor Type | A: Brushless DC motor, B: Brushed DC motor, C: Three-phase asynchronous motor, D: Servo motor, E: Explosion-proof motor |
||||||
| 7 | Motor Power | 1:40W, 2:70W, 3:100W, 4:120W, 5:150W, 6:200W, 7:250W, 8:380W, 9:400W, 10:550W |
||||||
| 8 | Sealing Ring | A: Fluororubber (FKM), B: Polytetrafluoroethylene (PTFE) |
||||||
Technical Paramaters
| Model | Displacement | Flow | Viscosity Range（cps) | Temperature Range | Pressure Difference | Inlet Filter | Inlet Vacuum Level | Noise |
| ml/rev | L/min | |||||||
| MPB003 | 0.10 | 0.3 | 0-3000 | -30℃~120℃ | 0-20Bar | Recommended 400 mesh | -0.85bar | 4000RPM＜60db |
| MPB005 | 0.15 | 0.5 | ||||||
| MPB015 | 0.35 | 1.5 | ||||||
| MPB030 | 0.90 | 3 | ||||||
| MPB060 | 1.41 | 6 | ||||||
| MPB075 | 1.70 | 7.5 | ||||||
| MPB100 | 3.60 | 10 | ||||||
| MPB150 | 5.40 | 15 | ||||||
| MPB300 | 6.60 | 30 | ||||||
| MPB450 | 15 | 45 | 0.2-12000 | -10℃~90℃ | 0-5Bar | 2000RPM＜60db | ||
|
MPB1000 |
33 | 100 |
Dimensions
Performance Curve

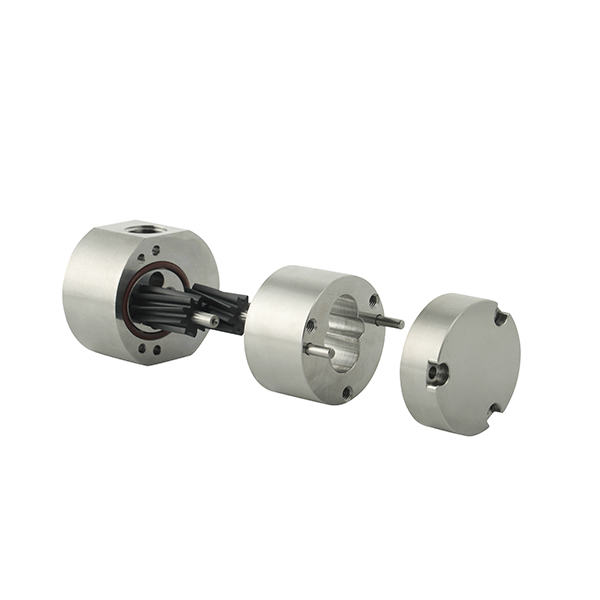

Exploded View Drawing
| 1 | Inner-hexagon screw*3 | 2 | Front end cover | 3 | Sealing ring 1 |
| 4 | Dowel*2 | 5 | Driving gear | 6 | Driven gear |
| 7 | Pump chamber | 8 | Shaft sleeve*6 | 9 | Main body |
| 10 | Sealing ring 2 | 11 | Internal magnetic steel | 12 | Shielding case |
| 13 | Mounting plate | 14 | Countersunk head screw head M3*6 |
Instructions for installation and use
1. Take out the inlet and outlet plugs and install the matching threaded joints. The inlet and outlet joints of the pump must be wound around the raw meal belt, especially at the inlet, if there is air leakage, there will be no suction.
2. The pump should be as close to the liquid source as possible, and the size of the inlet and outlet pipes should not be smaller than the size of the pump body joints, and the length of the pipe should be shortened as much as possible.
3. When installing, install in the direction indicated by the arrow on the end cover, otherwise the liquid will not be sucked up.
4. Please ensure that there is liquid in the pump body, if you do not use the removal pipe for a long time, please install the plug to protect the gear. Failure to do so will result in permanent damage to the pump.
5. When the pump is used for the first time, please flush the pump pipeline, and the inlet pipe is equipped with a filter nozzle, and the filtration accuracy requires the diameter of the particles in the liquid to be less than 20 microns.
6. When the pump is working continuously, please cool down the pump in time.
Applications
With the rapid development of domestic micro magnetic pump technology, micro magnetic pump has been widely used in various fields of society, such as food and beverage, cosmetics, mechanical coding, life science, chemical measurement, etc., and has gradually become an indispensable core component of industrial equipment
