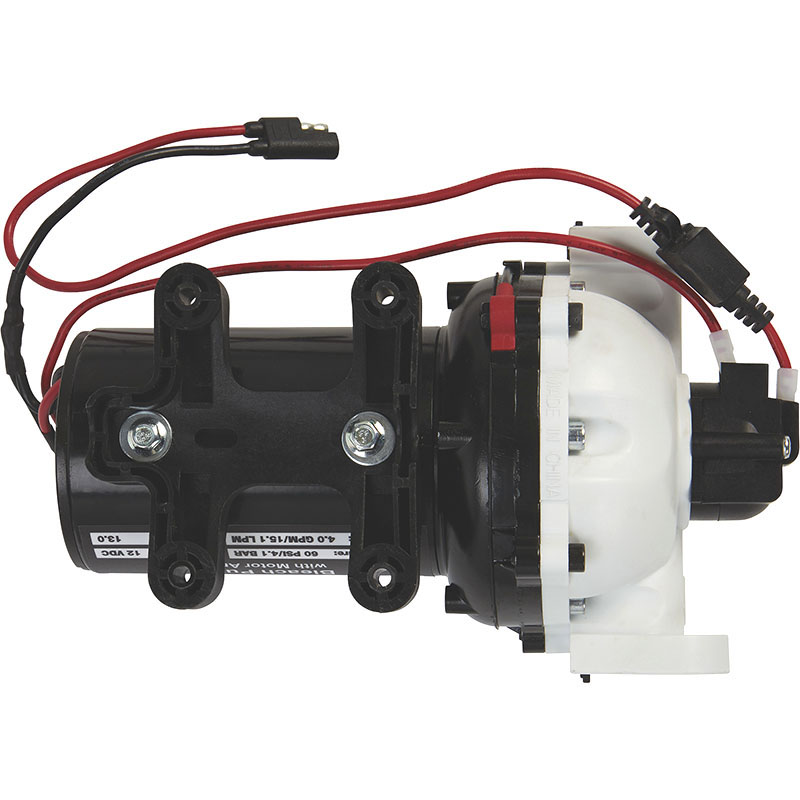

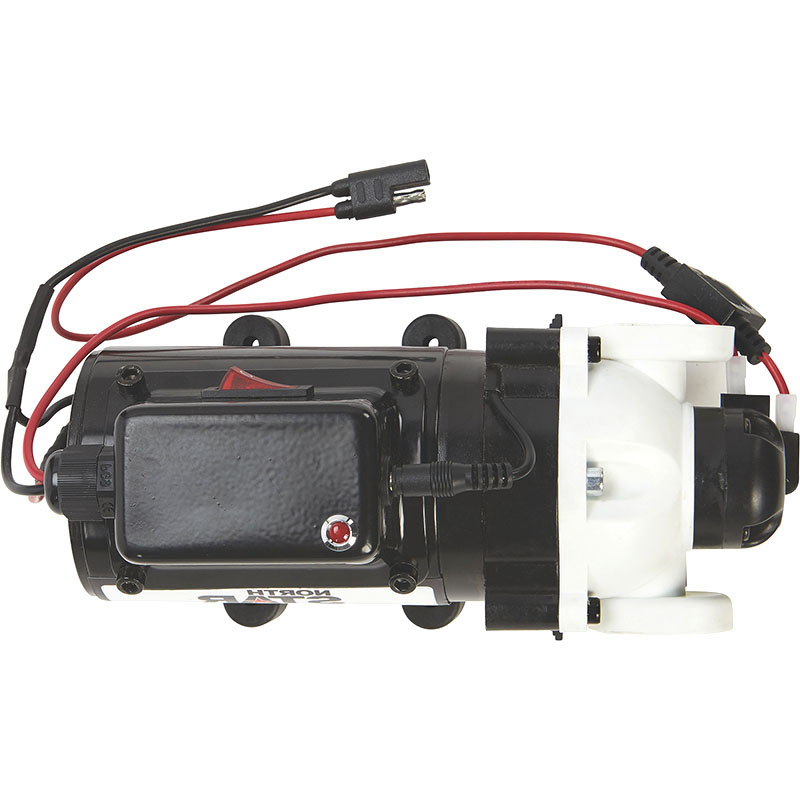

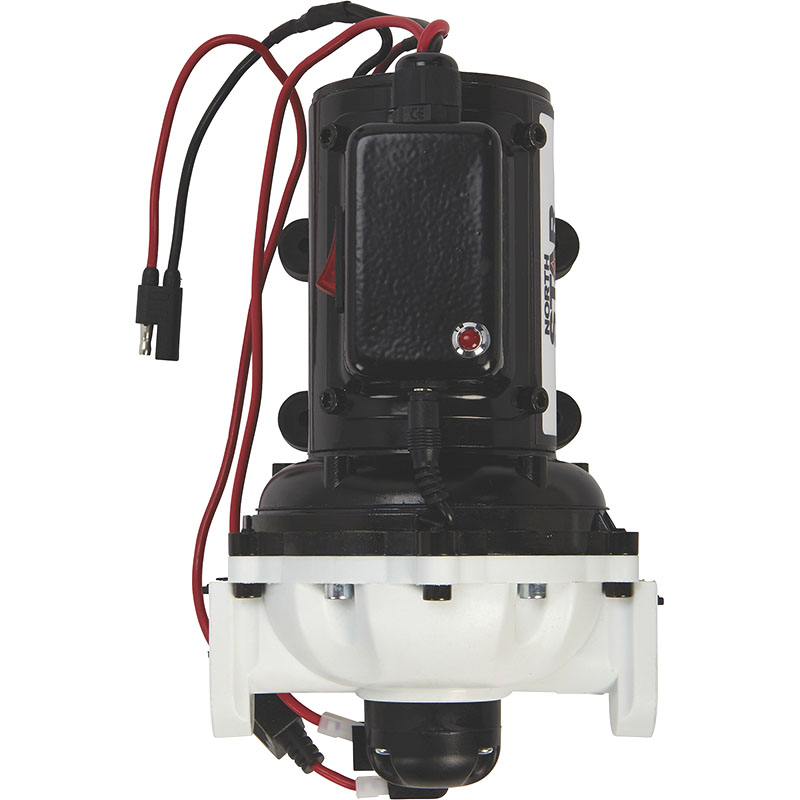

FLOWSTAR Disinfection Chlorine Pump KFL-157 Series
The motor is equipped with an exclusive designed leakage sensor. When the water pump is damaged and the diaphragm leaks, the internal sensor can detect the leakage in time and turn off the power supply of the water pump to protect the motor and equipment and reduce losses. With an independent power switch for easy use, The pump head can be quickly replaced (sold separately), and the pump can be quickly restored to work when the pump fails
FLOWSTAR Disinfection Chlorine Pump Water Spray Pump KFL-157 Series DC Pump Electric Pump Motor Drive Diaphragm Pump 8.3-20.8LPM 60-70PSI
Features
1. The motor is equipped with an exclusive designed leakage sensor. When the water pump is damaged and the diaphragm leaks, the internal sensor can detect the leakage in time and turn off the power supply of the water pump to protect the motor and equipment and reduce losses.

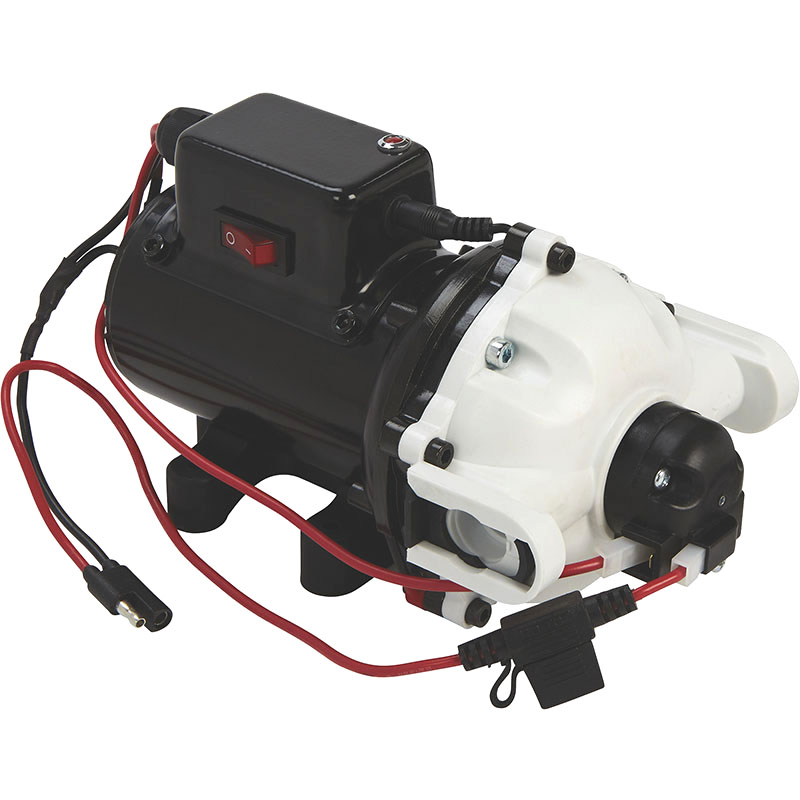

2. With an independent power switch for easy use

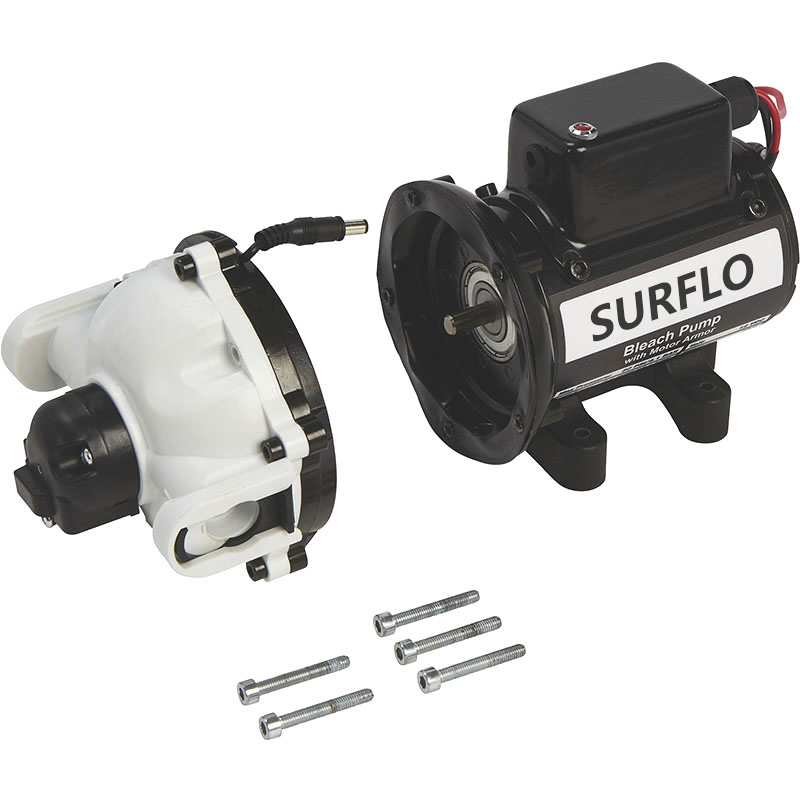

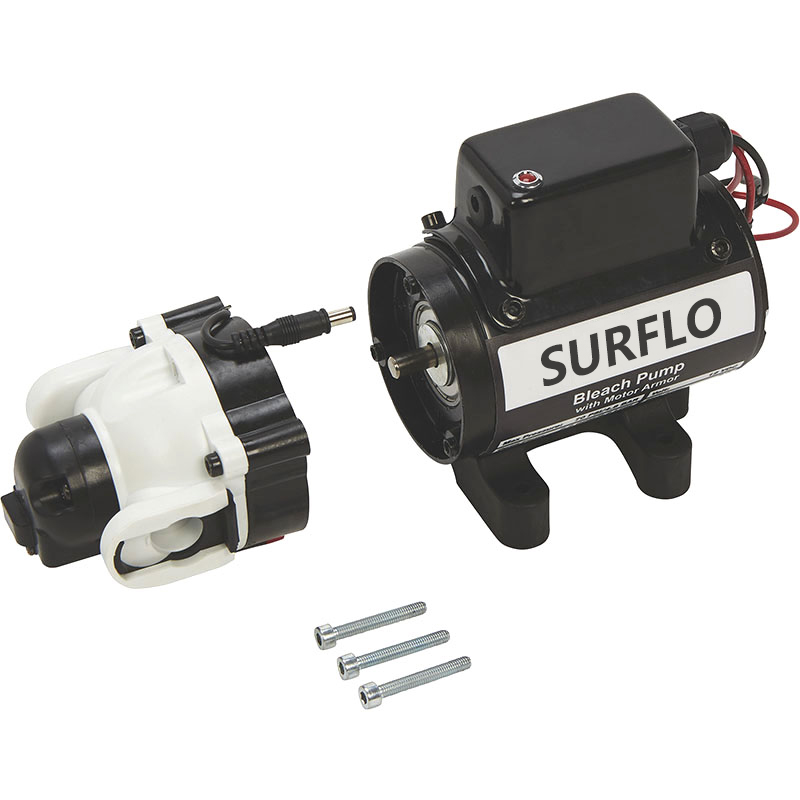

3. The pump head can be quickly replaced (sold separately), and the pump can be quickly restored to work when the pump fails
Application
Allows the transportation, disinfection and cleaning of chemical media, can effectively transport acid-base chemical media (the tolerance of chemical media needs to be confirmed by our company), and can also be used for sterilization and disinfection of large areas.
Specifications
| Model | VOLTS (V) | Max AMPS (A) | Max Temp. | Open Flow (L/MIN) | Max Pressure (Psi) | Suction (M) | Max Power (W) | In/Outlet (MM) |
Dimensions (MM) | Base Hole (MM) |
| KFL-157-145 | 12V | 8A | 60 ° | 8.3L | 70PSI/4.8BAR | 3M | 96W | 3/4" Snap Fit | 230*102*127 | 57*81 |
| KFL-157-147 | 12V | 13A | 60 ° | 15.1L | 60PSI/4.1BAR | 3M | 156W | 3/4" Snap Fit | 230*140*127 | 57*81 |
| KFL-157-153 | 12V | 17A | 60 ° | 20.8L | 60PSI/4.1BAR | 3M | 204W | 3/4" Snap Fit | 230*140*127 | 57*81 |
KFL-157-145 dimensions:
KFL-157-147 dimensions:
KFL-157-153 dimensions:
