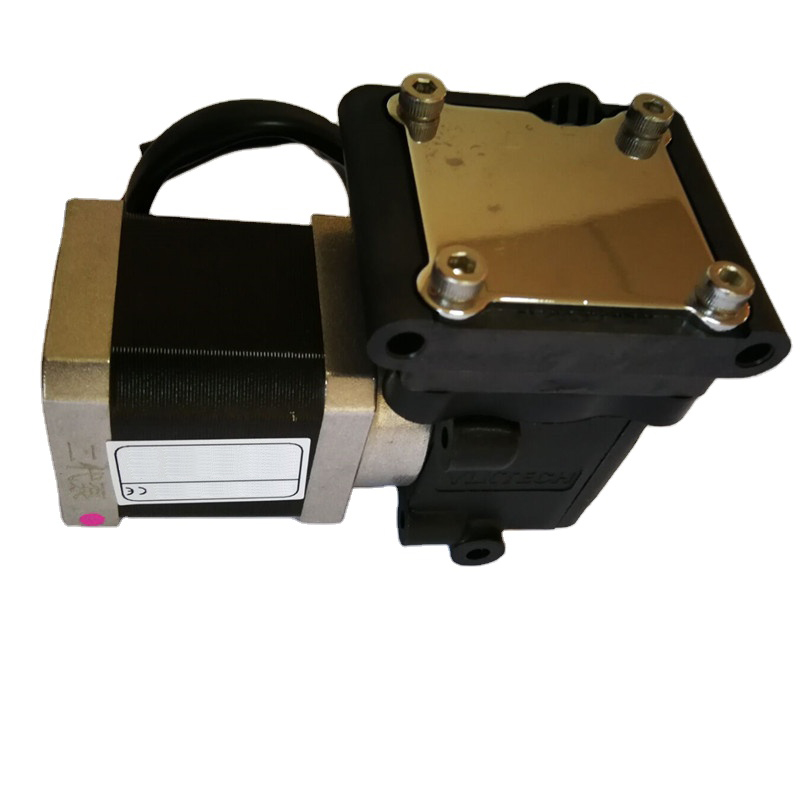

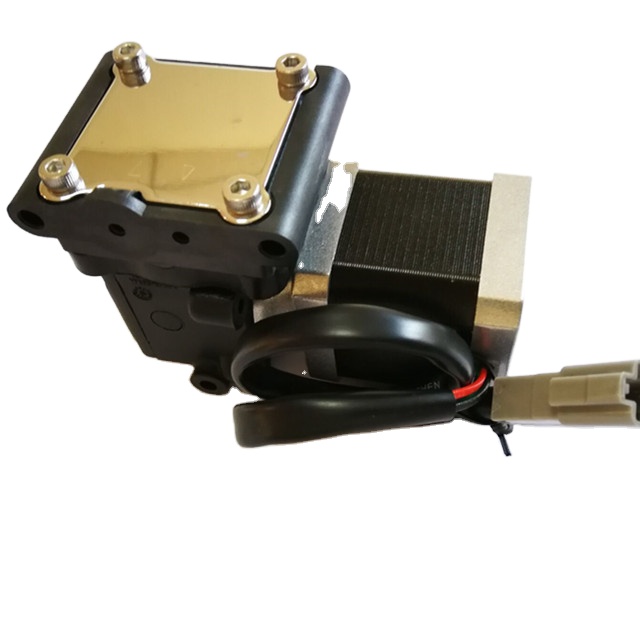

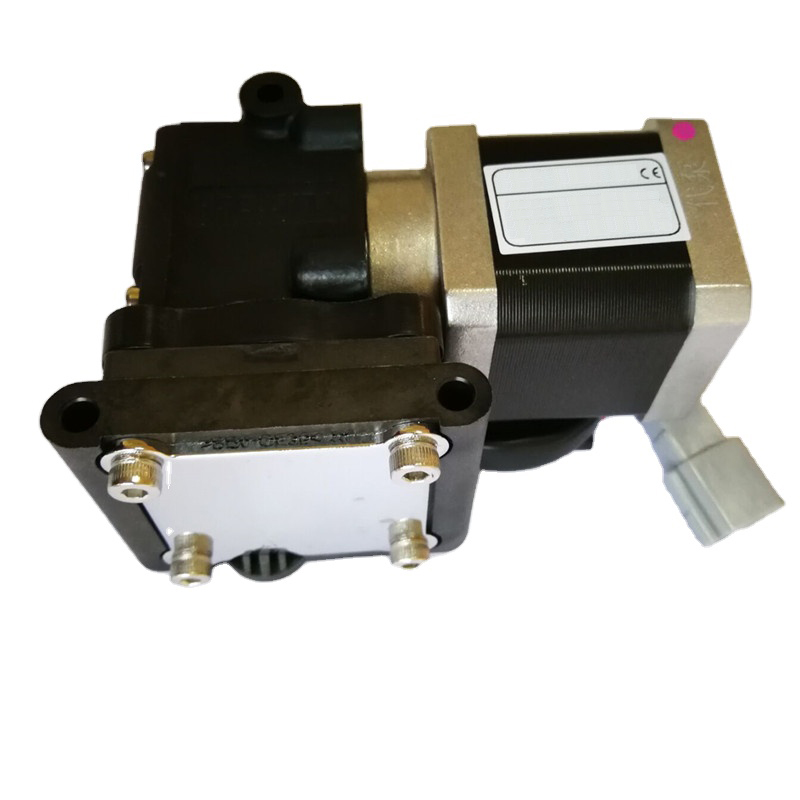

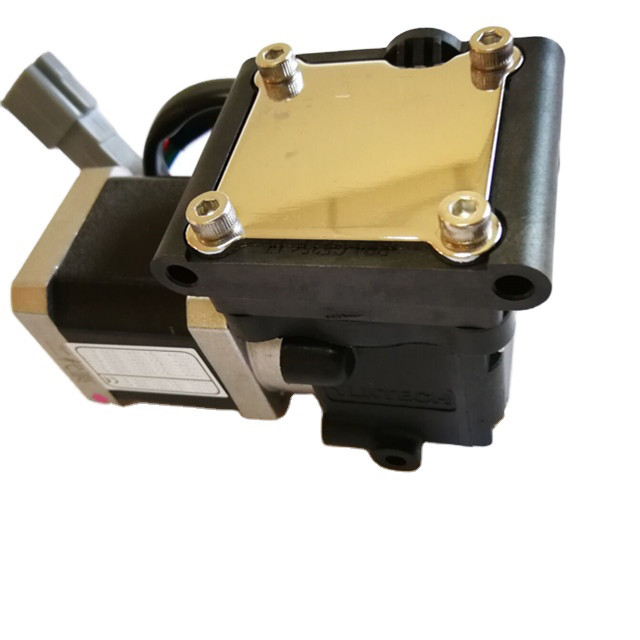

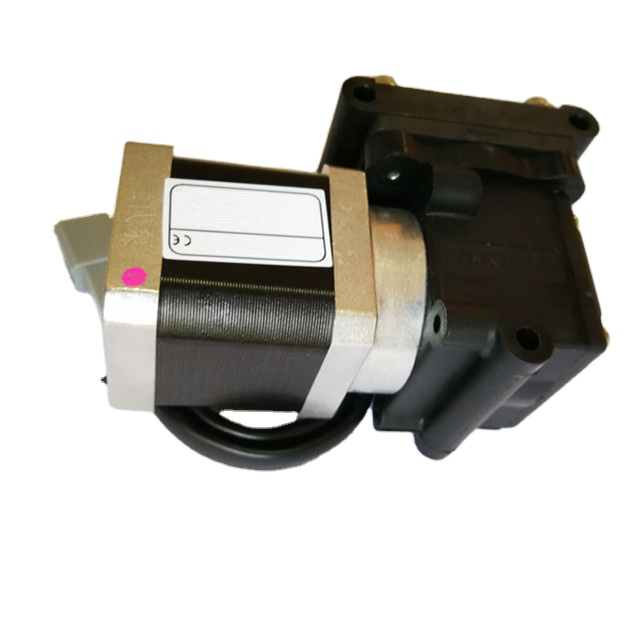

FLOWGATE urea pump for SCR and Ad-Blue KDLG182SM Diaphragm Pump for Liquid
FLOWGATE urea pump for SCR and Ad-Blue KDLG182SM Diaphragm Pump for Liquid
Oil-Free; Compact size; Corrosion resistant; Long life; Maintenance-free; Low Weight; Low noise and vibration; Low Power and High efficiency; Can be mounted in any plane; Stepper motor assemblied
FLOWGATE urea pump for SCR and Ad-Blue KDLG182SM Diaphragm Pump for Liquid
Features
Oil-Free
Compact size
Corrosion resistant
Long life
Maintenance-free
Low Weight
Low noise level & vibration
Low Power High efficiency
Can be mounted in any plane
Stepper Motor
Technical Parameters
Frequency: 240-320KHz
Rated current current: 0.4A
No-load Flow: 220mL/min
Max. pressure: 8Bar
Max. Vacuum: -30Kpa
Ambient temperature: -20°C-80°C
Fluid temperature: -20°C-60°C
Inlet connection: 2.75mm
Outlet connection: 2.75mm
Weight: 0.62Kg
Diaphragm material: EPDM
Valve Material: EPDM
